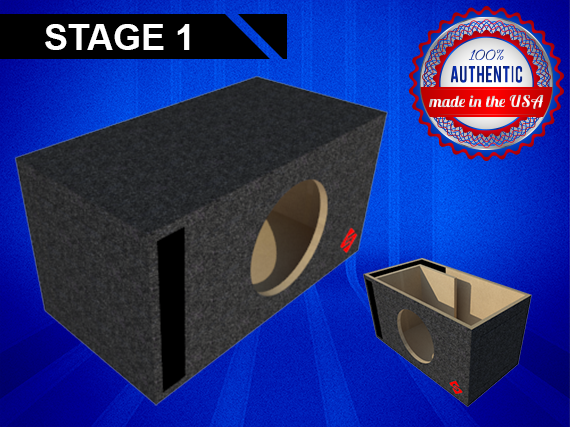

What is a Stage 1?
The Stage 1 is the standard enclosure to get you up and running.
Features!
- 0.75” Front Baffle: Standard mounting surface.
- CNC Machined: Automatic router cuts all the parts to perfection.
- Automotive Grade Carpet: Durable and closely match the trunk area.
- Gold Plated Terminal Cups: Increase electrical conductivity.
| General | Value | Description |
|---|---|---|
| Compatible Subwoofer | Alpine r-w10 |
Enclosure specifically built for subwoofer. |
| Enclosure Stage | 1 |
Entry Level. |
| Enclosure Type | Ported |
Provides deep bass! |
| Terminal Cups | One (1) | 24 kt. Gold plated. |
| Finish Material | Carpet | Automotive grade. |
| Physical | Value | Description |
| Width | 15.750" |
Left to right. |
| Height | 14.000" |
Floor to top. |
| Depth | 13.094" |
Front to back. |
| Net Volume | 0.95 ft³ | All displacements have been taken into account. |
| Tuning Frequency (Fb) | 36.08 Hz. | Enclosure tuning frequency. |
| Port Width | 0.750" | Width of the port. |
| Port Area | 9.405 ft² | Crossectional area of the port. |
| Cutout Diameter | 9.063" | Specific cutout diameter for the subwoofer. |
| Wall Thickness | 0.750" | Width of the construction material. |
| Baffle Thickness | 0.750" | Solid mounting surface! |
| Weight | 20 lbs. | Estimated weight of enclosure. |
